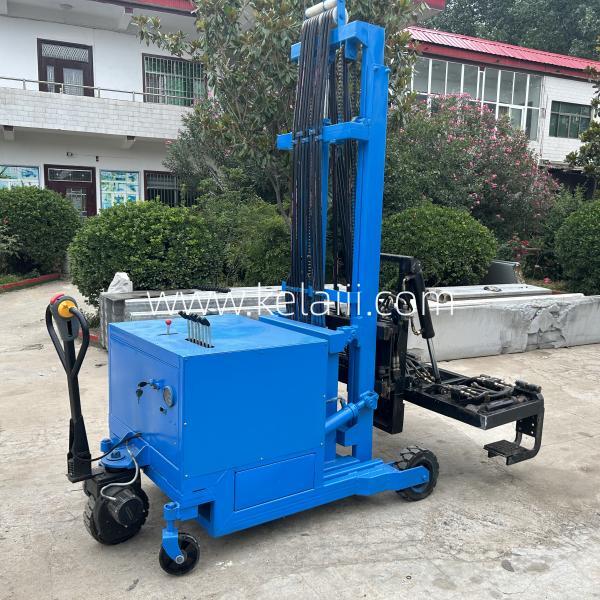

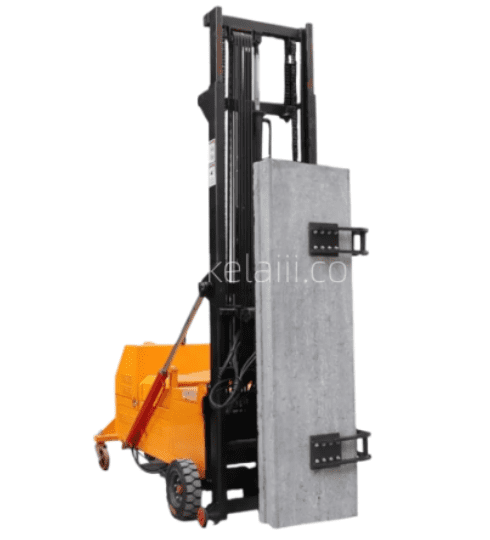

Overview Of The Latest Hydraulic Wall panel installation machine
This wall panel installation machine is specially used to carry and erect precast lightweight concrete|Acotec|EPS|ALC|AAC wall panels and other types of interior and exterior partition wall panels. It is a very practical wall panel lifting machine equipment, which is widely used by construction and installation contractors.
The wall panel installation machine is composed of electric drive system, hydraulic oil pump system, reversing valve operation system, walking control system, unilateral hydraulic clamture system, left and right hydraulic side shift system, 360 degree rotation system, slide lift system, and rear tilt hydraulic support system.

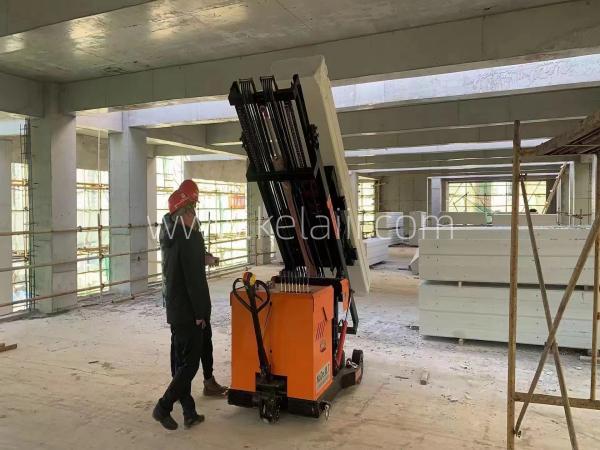

The panel installation machine is used for moving and lifting the wall panel at construction site and installing the panel into the upright position.
The panel is moved onto the correct position by the installation machine and lifted for installation.-Wall panel installation machine can be moved and drove automatically. Lifting the panel with hydraulically operated by the handheld control device.-The wall panel is picked up by horizontal position then rotated to the vertical position for installation work.-The machine normally worker by Battery, charging device 48v / 50 / 60 Hz with a plug connection. After a 3-5hours full charge, the machine can work continuously for 8-10 hours.-The Max loading capacity of the machine can lift and install Max. panel weight 1500kg, width 1200mm, length(height) 7500mm.
There are different models of installation machines designing for the different wall panel installation sites. For example, we designed and manufacture the compact size of wall panel installation trolley specially used for the wall panel installation in the apartment rooms- hours
Advantages Of Wall Panel Installing Machine
Reduce the labor intensity by using hydraulic oil cylinders to complete the grasping, handling, and installation of the panel.Improve work efficiency, save labor
Reduce the damage to the panel by using hydraulic clamps and left and right hydraulic side shift systems to complete the installation and splicing at the same time.
With Hydraulic lock, power-off brake, 0 widened drive axle, safety non-slip rubber pad, weighted base, reversing reminder and so on Safety features.Ensure the personal safety of installation workers
Improve work efficiency, change the original human operation, into mechanical operation, save labor, improve efficiency.

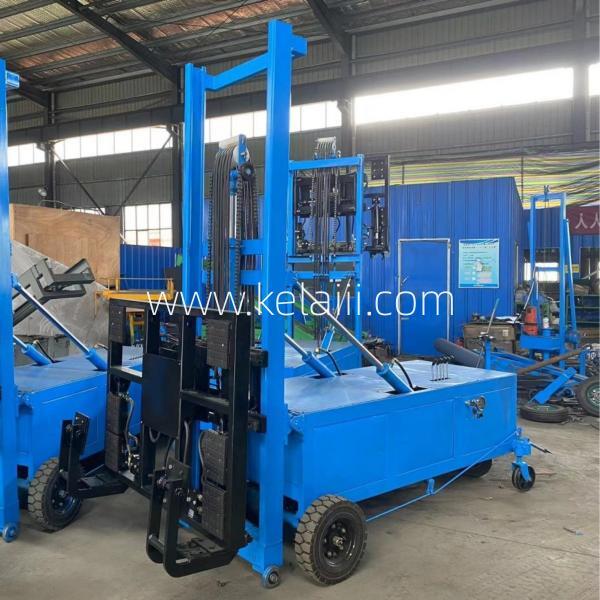

We have more than ten models of wall panel installation machines, which can meet the work needs of customers at different wall panel construction sites, such as, residential buildings, apartments, commercial buildings, office buildings, hospitals, factory warehouse buildings, basements, etc.
Working Principle of Wall Panel Installation Machine
Electric Drive System
A DC 48V drive battery is used to power the wall panel installation machine. The use of the electric drive axle effectively reduces the labor intensity of workers in the process of carrying the panel. The drive motor of the wall panel installation trolley can be controlled through the handbrake handle, and there is a power cut-off in the event of an emergency.
Hydraulic Power System
The power output of the hydraulic cylinder is generated from the battery. The hydraulic cylinder produces high-pressure oil to operate the five-link hydraulic directional valve to control the lifting, support, left and right side shift, 360- degree rotation, and the hydraulic clamp of the wall panel installation machine.
Left&Right, Forward&Backward Shift Device
The steering handle is used to control the movement of the wall panel installation trolley left, right, forward and backward.
360-Degree Rotating Device
The 360-degree rotating device enables the panels to be installed horizontally or vertically. So the wall panel installation machine works more flexibly。
Hydraulic Clamp
The design of the unilateral fixture is to splicing the wall panel without using the crowbar. The machine can directly move the panel in one step to complete the docking work for the panels, and use the tension of the hydraulic cylinder to complete the unilateral binding of the plate. The power source of the cylinder is controlled by the hydraulic reversing valve.
Hydraulic support device
Due to the different lengths of the panels to be installed, the required installation height is also different. In a limited space of installation and transportation, the rear tilt support function is used to reduce the height of the wall panel installation machine

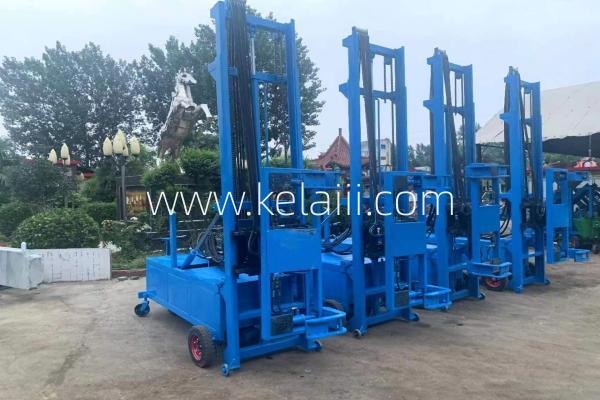

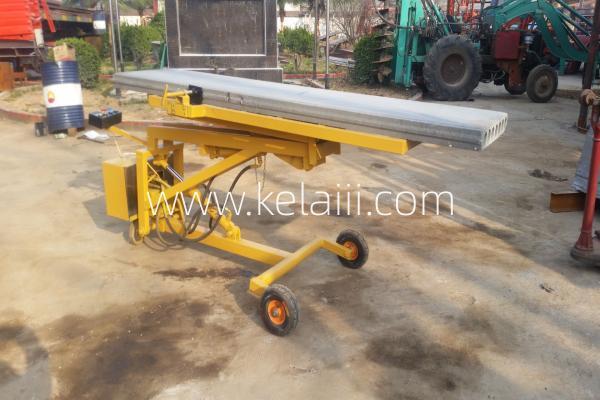

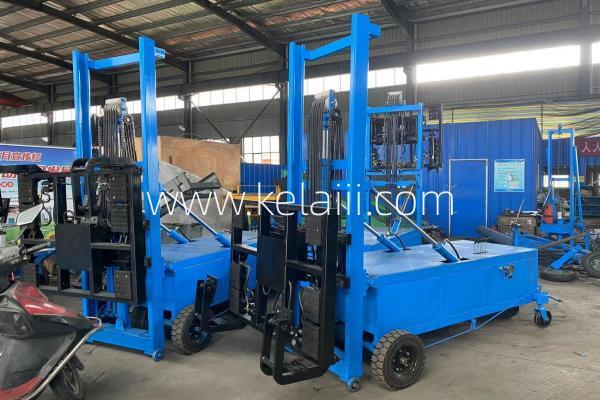

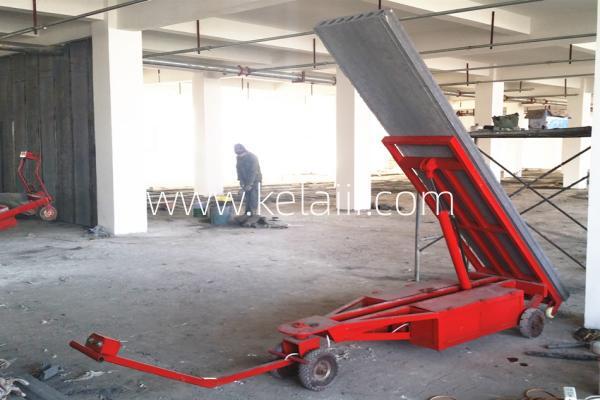

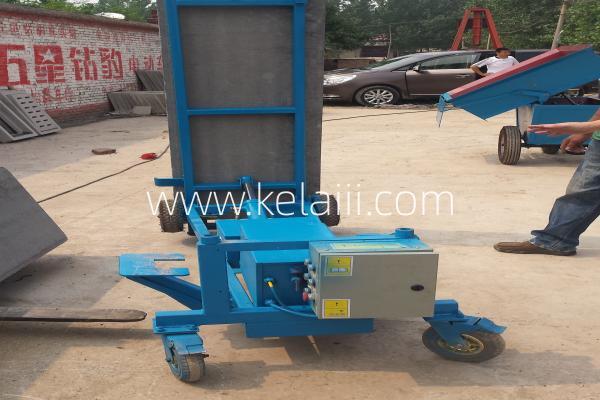

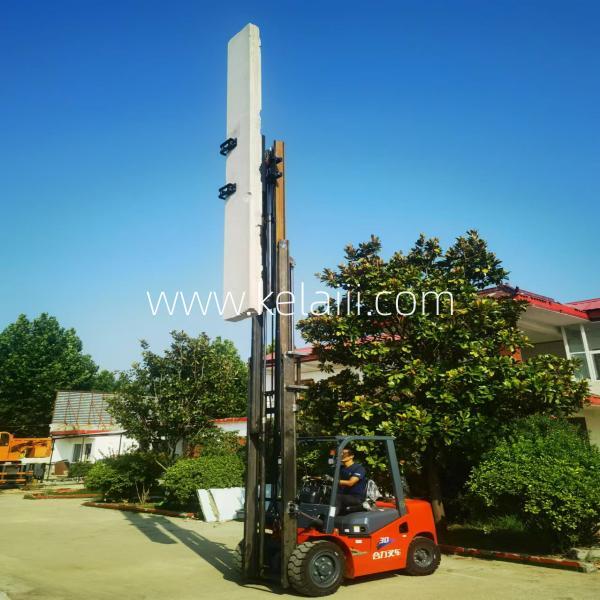

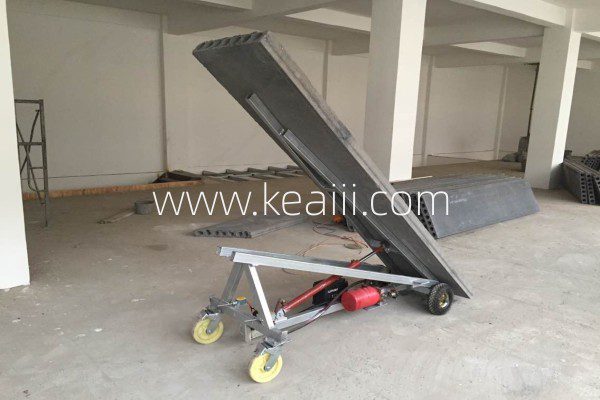

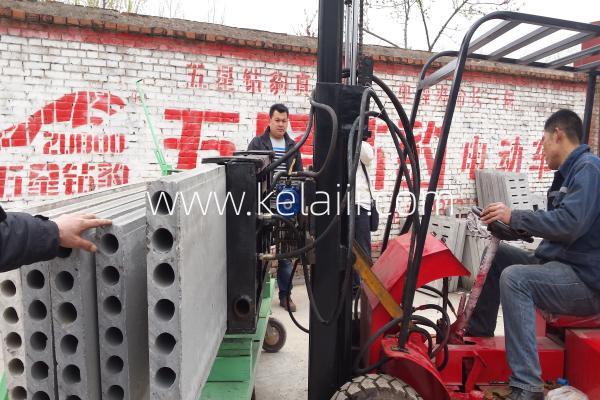

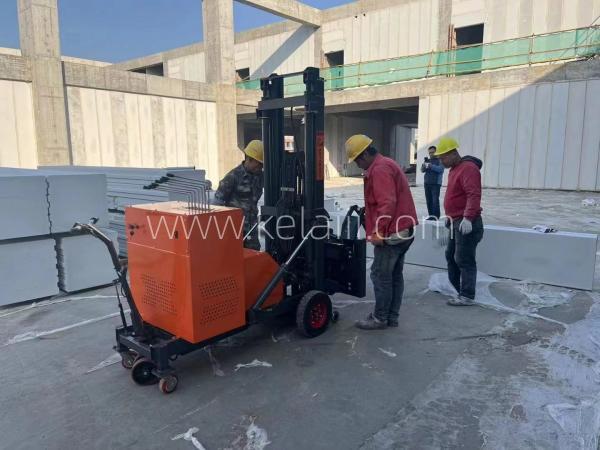

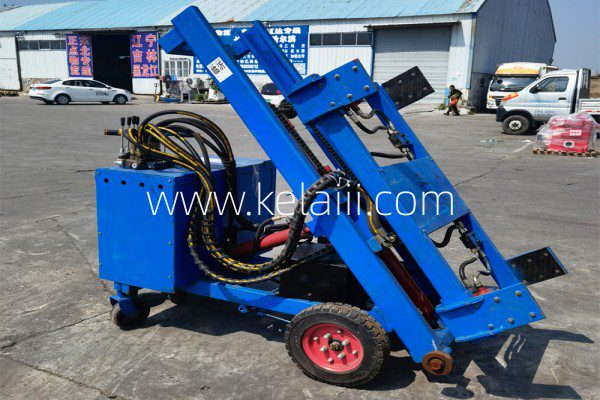

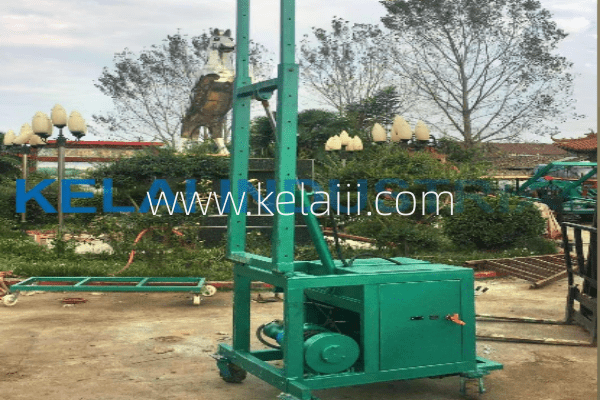

Other Models of wall panel installation machines

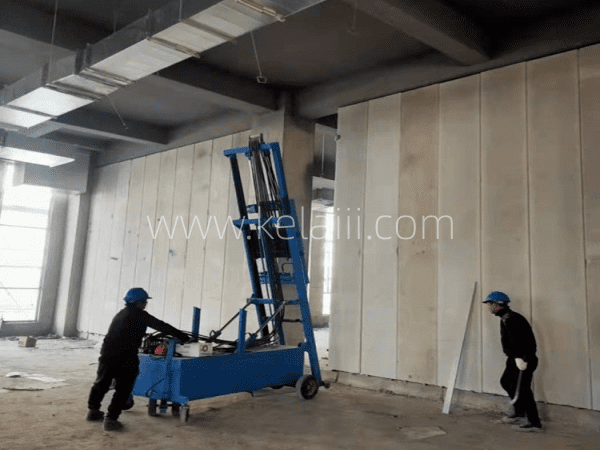

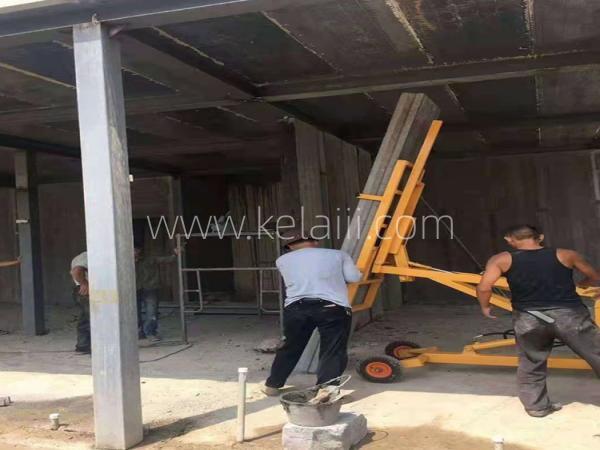

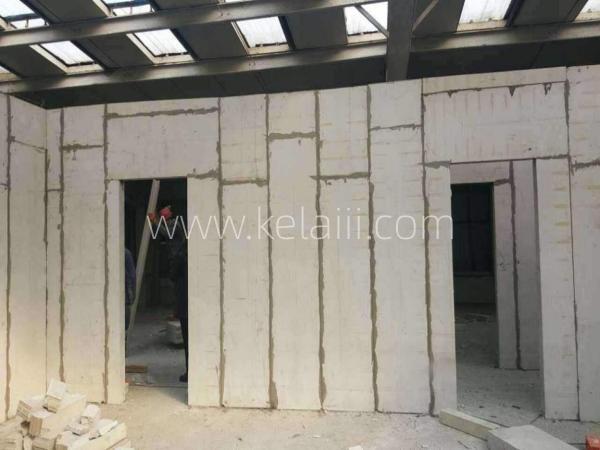

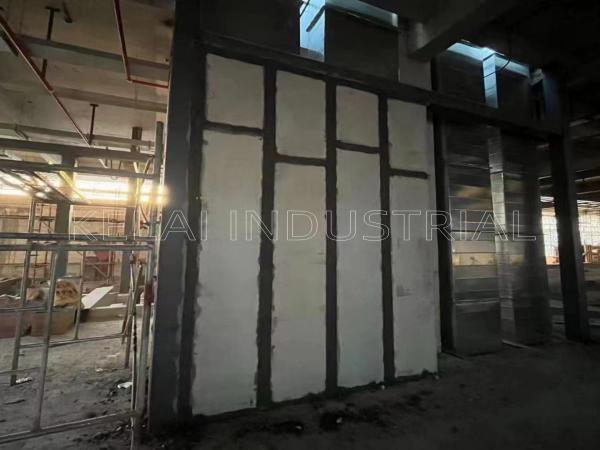

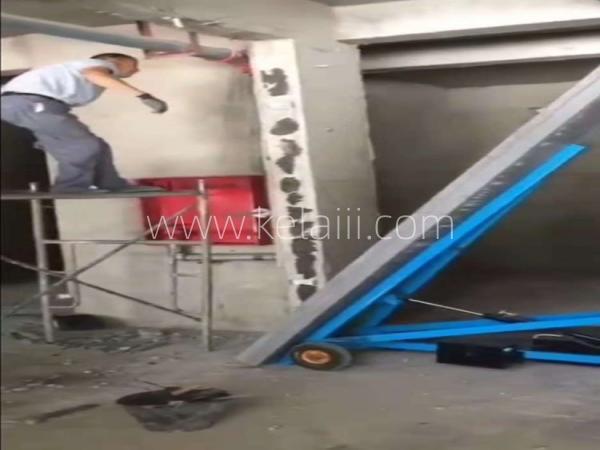

Application of the concrete wall panel installation machines
