Instruction of the Precast Concrete Fence Wall Making Machine
Precast concrete fence wall making machine is a kind of equipment specially used for producing precast concrete fence panels. It adopts advanced concrete molding technology and can efficiently and mass-produce standardized concrete fence panels. It is widely used in residential areas, industrial areas, agricultural parks, boundary walls and other places, and is an indispensable production tool in the construction industry.
Concrete fence wall is a new type of wall structure composed of wall panels and H-shaped columns. The production of precast fence walls requires at least two main machines, named the concrete boundary wall panel machine and the concrete H column machine. We called the two machines as precast concrete fence wall machine or precast boundary wall machine.Both machines work on the extrusion or pushing principle.
Precast Concrete Fence Panel Making Maker Main Features:
Reasonable structure,flexbile operation,easy maintenance,low energy consumption and high efficiency.flexible and easy to remove.ideal equipment for small and medium factory.
Environmental protection and energy saving: The design of modern precast concrete floor machines tends to be environmentally friendly, using energy-saving motors and efficient vibration devices to reduce energy consumption, optimize the utilization rate of concrete and reduce waste.
Diversified mold design: Precast concrete floor machines can customize different shapes and sizes to produce customized fencing walls according to different architectural design requirements.
Efficient vibration system: The equipment is usually equipped with a powerful vibration system to ensure that the concrete is evenly distributed and compacted in the mold, eliminating bubbles and voids, and increasing the strength and durability of the component.
Prefabrication: Prefabricated concrete fence wall making machines can realize mass production of concrete fencing panels, which also can be used in the construction of many types of projects, such as boundary, farms, industrial plants, etc. Due to their high degree of standardization, prefabricated components can shorten the construction period and improve construction efficiency.
Precast Concrete Boundary Panel Maker Forming principle&Process
Precast Concrete Fence Wall Machine Working Principle
Precast concrete fence panel machines usually adopt a vibration molding process, using high-frequency vibration to help the concrete slurry be evenly distributed and compacted, thereby improving the density and strength of the fence panels. The machine pours concrete into a fixed mold, vibrates and solidifies it within a certain period of time, so that the concrete fence panels are formed in a relatively short time.
Concrete Fence Wall Making Machine Working Process
• Preparation of concrete mix: concrete mix • Concrete pouring: a trolley pours concrete into the machine • Vibration and compaction: precast fencing wall panel making machine works to make fence walls • Prestressing (optional): tensioning steel wires • Cutting: cutting to the length as you required •Curing: concrete solidifies •Final product: precast concrete fenceing wall panel.
Precast Concrete Boundary Making Machines

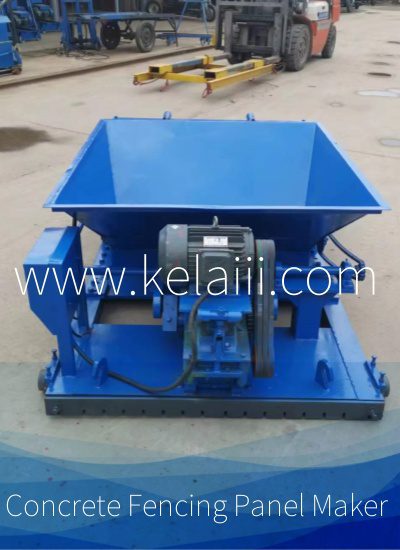

Concrete Fencing Wall Making Machine
The concrete fence wall panel machine is the one of the main machines of Concrete fencing machines. It is designed to make the concrete fence wall panels. The wall panels can be made with normal concrete materials or lightweight concrete aggregates . The normal wall panel thickness is 50MM, 60MM, 80MM, 90mm, and the width of the wall is 300mm,400mm 500mm,600mm. The length of the wall panel can be cut according to the customer's requirements. There are 4-6 low carbon cold drawn reinforced 3-5mm steel wires mixing in the concrete wall panels. In generally, one machine can make 1-2 rows of concrete wall panels basing on the different sizes.
Concrete fencing H I Post Making Machine
The concrete columns machine is used for making the fence columns&posts for supporting the fence wall panels. The columns are with grooves in its two sides so that the wall panel can insert in the H grooves when installation.also some customer will request 3-4 grooves for fence corner installation.There are 4-6 low carbon cold drawn steel wires of 3-5 mm embedded in the column.According to the different column sizes, the machine can make 2-4 rows of concrete columns at a time.Meanwhile,we also design and manufacture the Concrete wall panel machine or precast boundary wall machine according customers’ special requirement.
Model TWT50×300 machine,making 2 lines wall panels at a time.Panel cross section size is 50×300MM
Model TWT50×500 machine,making 2 lines panels at a time,panel cross section size is 50×500MM
Model TWT90×600 machine,making 1-2 lines panels at a time,Panel cross section size is 90×600 MM
Model TWT150×150,making 3-4 columns at a time,Column Cross Section 150×150MM ,for supporting 40mm,50mm,60mm thickness wall panels.
Model TWT220×220,making 2 columns at a time.Column Cross Section 220×220MM ,for supporting 70mm-100mm thickness fence wall panels.
Other models TWT180×200，TWT220×220，TWT230×230...making 2 columns at a time.All sizes can customized.

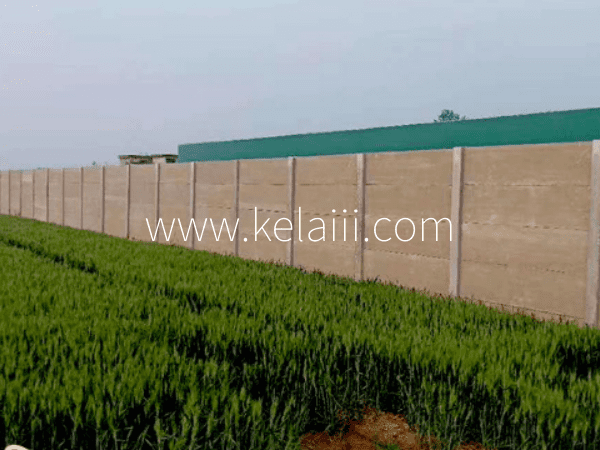

Application of the concrete fencing Wall panels
