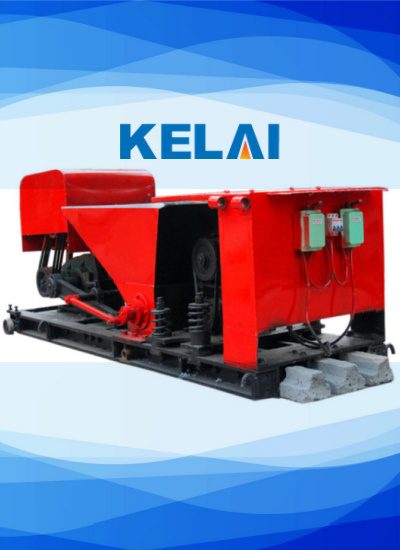

Description Of The Precast Concrete T Beam Making Machine
Precast concrete T beam making machine a specialized construction machine developed in our company according to the actual situation of the nation with characteristics of novelty design, reasonable structure, easy operation, high efficiency and endurance. The t beam for construction produced with this machine is characterized with high intensity and accurate size completely meeting the national standard. Equipped with this machine is moving system which is flexible and easy for assembly and dismantle, and satisfying the customer.
The Prestressed T-beam forming machine is called roofing floor beams.It is usually for supporting the hollow core blocks or slabs for the roofing. The beams are reinforced with prestressed steel bars or wires which makes the beams highly effective. The prestressed precast concrete T beam machine is one of the new designs for manufacturing prestressed concrete T beams or concrete joists. The Precast concrete T beam making machine work on the principle of pushing slipfomer or extruder. This gives them an exceptional amount of dimensional stability. Its production efficiency is 4-5 times compared to the traditional molding method. The finished concrete beams cast by the precast concrete joists machine are very compact and smooth. According to the different customers’ requirements, we can design the machine to make the different sizes of T beams.
Precast Concrete T Beam Machine's Main Features:
Reasonable structure,flexbile operation,easy maintenance,low energy consumption and high efficiency.The machine is easy to operate. Only 2-3 persons can run the whole precast factory.
Using energy-saving motors and efficient vibration devices to reduce energy consumption, optimize the utilization rate of concrete and reduce waste.High capacity. One single machine can cast 2-8 rows of T beams depend on their different sizes.The length of beams can be cut as per different construction requirements.
Diversified mold design: Precast concrete T beam machines can customize different sizes to produce customized t beams according to different architectural design requirements.The smooth surface, high-density for the finished lintels products
The T beam forming machine equipped with a powerful vibration system to ensure that the concrete is evenly distributed and compacted in the mold, eliminating bubbles and voids, and increasing the strength and durability of the component.
Prestressed Concrete T Beam Machine can realize mass production of concrete T beams, which also can be used in the construction of many types of projects, such as roof, floor, industrial warehouse, etc.Can shorten the construction period and improve construction efficiency.
Concrete T Beam Forming Machine Forming principle&Process
Concrete T Beam Forming Machine Working Principle
Precast concrete T beam machines usually adopt a vibration molding process, using high-frequency vibration to help the concrete slurry be evenly distributed and compacted, thereby improving the density and strength of the Tee beams. The machine pours concrete into a fixed mold, vibrates and solidifies it within a certain period of time, so that the concrete t beams are formed in a relatively short time.
Concrete T Beam Forming Machine Working Process
• Preparation of concrete mix: concrete mix • Concrete pouring: a trolley pours concrete into the machine • Vibration and compaction: precast t beams making machine works to make T beams • Prestressing (optional): tensioning steel wires • Cutting: cutting to the length as you required •Curing: concrete solidifies •Final product: precast concrete T beams and then stacking and Maintenance.

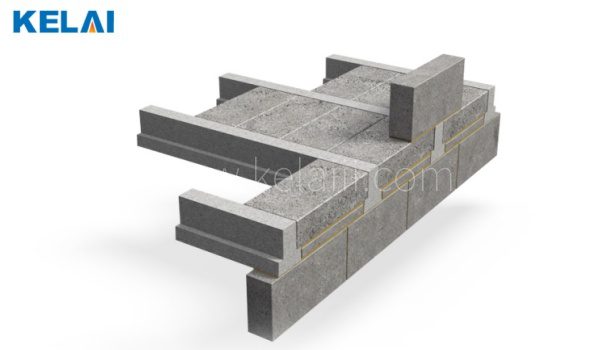

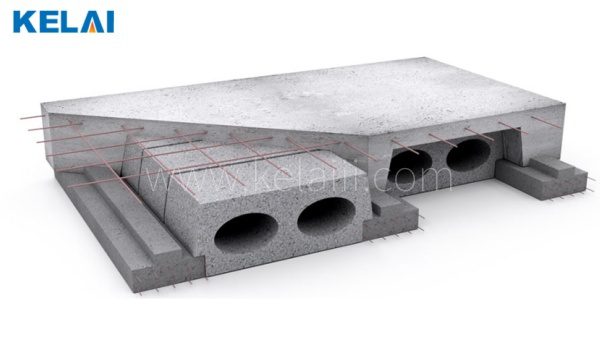

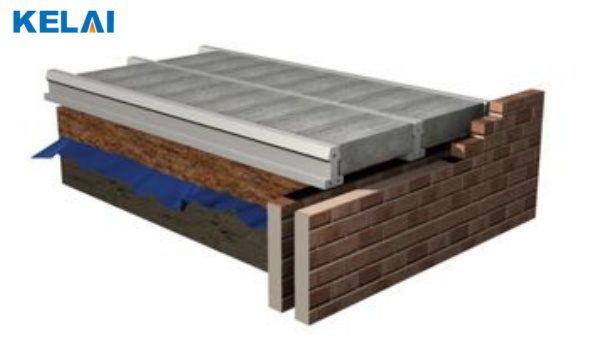

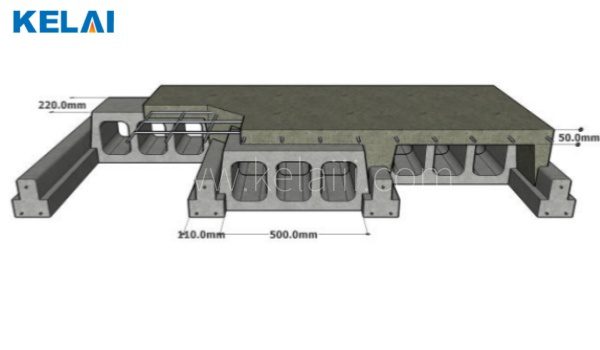

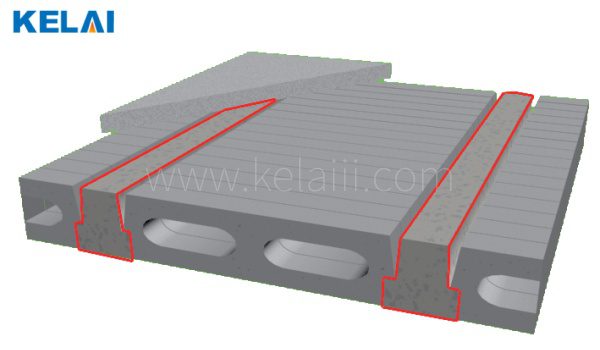

Precast Concrete Tee Beams Designs Application effect diagram
1.1 Cement：32.5R or 42.5R Portland cement and ordinary Portland cement
1.2 Sand：Medium sand
1.3 Stone：Rubble and broken pebble are optional
1.4 Water：Drinking water without harmful substance
1.5 Dry concrete is used for precast concrete T-beam with a strength grade.
Cleaning the producing bed→ painting parting agent→ distribute steel wire and fix→tensioning the steel wire→mixing and transportation of concrete → slab molding →
make testing block→ covering and curing →testing block intensity →relief the steel wire→ cutting slab→ storage

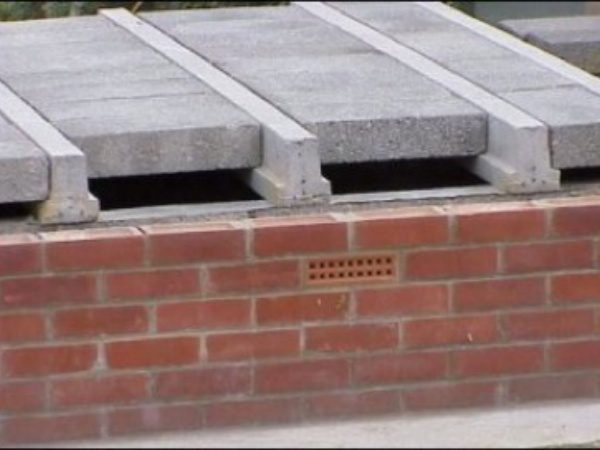

Application of the concrete T beams
